SS-480
The SS-480 Smart Socket provides reliable power management for industrial applications. Engineered to accept a nominal input voltage of 480VAC, with a maximum tolerance of 520VAC, it ensures stable operation in demanding environments. Its low power consumption of 6 Watts maximum contributes to energy efficiency. The unit is CSA Certified, affirming its adherence to rigorous safety and performance standards. Compatibility with Time Mark Models B246, 253, 257B, and 258B relays offers integration flexibility. Designed for consistent performance, the SS-480 operates across a 50-400Hz frequency range and maintains functionality within 0-97% humidity without condensation. Physical dimensions of 3.25 inches length, 4.00 inches width, and 3.50 inches height, coupled with 24-inch color-coded lead wires, facilitate straightforward installation. This robust design supports long-term operational stability and system integrity.

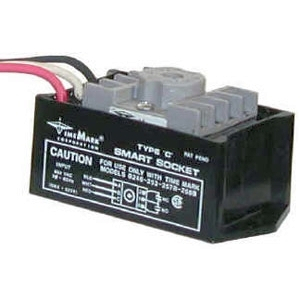

Time Mark’s Smart Socket is the first socket which will allow monitoring
of voltages up to 635 VAC with a socket-mounted Time Mark phase loss
relay. The appropriate relay will allow monitoring for phase loss, phase
reversal, low voltage and high voltage conditions. A key safety feature
of the Smart Socket is it will not allow the voltage potential at the
pin connections to rise to the full input voltage when the relay is
removed. Two versions for the Smart Socket are available: one for 480
VAC and one for 575 VAC applications. The Smart Socket is designed to be
used only with the Models B246, 253, 257B and 258B. Each of these relays
is covered by Time Mark’s exclusive 5-Year Unconditional Warranty (Note:
This product was previously designated as Model 98A544).
Out of stock
Specifications
| Family Part Number | 980544 |
|---|---|
| Type | Type C |
| Nominal Input Voltage | 480VAC |
| Maximum Input Voltage | 520VAC |
| Power Consumption | 6 Watts |
| Operating Frequency | 50 - 400Hz (socket only) |
| Humidity Tolerance | 0 - 97% without condensation |
| Agency Approvals | CSA Certified |
| Compatible Relays | Time Mark Models B246, 253, 257B and 258B |
| Warranty | Unconditional 5-Year Warranty |
| Lead Wires | 24" color coated leads |
