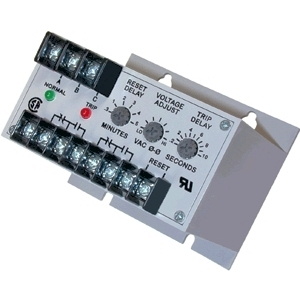

3-Phase Monitor
The MODEL 2652 3-Phase Monitor, SKU A2652, provides essential protection for industrial systems. It continuously monitors for critical conditions such as phase loss, low voltage, and phase reversal, safeguarding connected equipment from operational damage. Users can precisely configure the unit's response time, adjustable from 0.2 to 10 seconds, and restart delay, ranging from 0.3 to 5 minutes, to suit specific application requirements. Its selectable automatic or manual reset type offers operational flexibility, adapting to various operational protocols. With a robust DPDT contact configuration and a 10A at 240VAC resistive contact rating, this monitor ensures dependable performance. UL Recognized and CSA Certified approvals confirm its adherence to industry standards. Its compact dimensions and surface mounting facilitate straightforward integration into diverse control panel setups, enhancing system reliability.
3Ph Pwr Mon
Specifications
| Protection Functions | Detects Phase Loss, Low Voltage and Phase Reversal |
|---|---|
| Nominal AC Voltage (phase to phase) | 120VAC |
| Adjustment Range | 85-125V |
| Frequency | 60Hz |
| Power Consumption (per phase) | 1.5W |
| Repeat Accuracy | ± 0.5% of set point (fixed conditions) |
| Response Time | Adjustable: 0.2 to 10 seconds ± 5% |
| Restart Delay | Adjustable: 0.3 to 5 minutes ± 5% |
| Reset Type | Selectable: Automatic or Manual |
| Dead Band | Approximately 2% |
| Contact Configuration | DPDT |
| Contact Rating | 10A at 240VAC resistive |
| Mechanical Life | 10 million operations |
| Electrical Life | 100,000 operations at rated load |
| Operating Temperature | -20° to +131° F |
| Humidity Tolerance | 0-97% w/o condensation |
| Enclosure Material | ABS plastic |
| Mounting | Surface |
| Agency Approvals | UL Recognized and CSA Certified |
