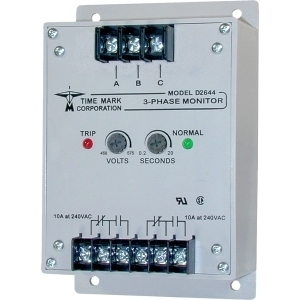

Model 2644 3-Phase Monitor
The Model 2644 3-Phase Monitor provides essential protection for industrial systems. Its capability to detect phase loss, low voltage, and phase reversal safeguards critical equipment from electrical anomalies. With a nominal AC voltage of 120VAC (phase to phase) and an adjustment range of 85-120V, it offers adaptability for various application requirements. The unit features a restart delay of approximately 3.5 minutes, ensuring controlled system re-engagement. A response time adjustable from 0.2 to 20 seconds allows for precise control over fault reactions. DPDT 10 amp output contacts ensure reliable switching for connected loads. This monitor is designed for consistent performance in environments ranging from -20° to +131° F, supported by a 5-year unconditional warranty. Its robust design, precise monitoring capabilities, and transient protection of 2500 VRMS contribute to operational continuity and equipment longevity.
120V 3Ph Pwr Mon
Specifications
| Reset Type | Restart Delay |
|---|---|
| Restart Delay Time | approximately 3.5 minutes |
| Nominal AC Voltage | 120VAC (phase to phase) |
| Adjustment Range | 85-120V |
| Frequency | 60Hz |
| Power Consumption | 0.75W |
| Function | Detects Phase Loss, Low Voltage and Phase Reversal |
| Warranty | 5 Year Unconditional Warranty |
| Transient Protection | 2500 VRMS for 10ms |
| Repeat Accuracy | ± 0.1% of setpoint (fixed conditions) |
| Response Time | Adjustable 0.2 to 20 seconds ±10% |
| Dead Band | Approximately 2% |
| Output Contacts | DPDT 10 amps at 240VAC resistive |
| Expected Relay Life, Mechanical | 10 million operations |
| Expected Relay Life, Electrical | 100,000 operations at rated load |
| Operating Temperature | -20° to +131° F |
| Humidity Tolerance | 0-97% w/o condensation |
| Enclosure Material | ABS plastic |
| Mounting | Surface |
| Agency Approvals | UL Recognized and CSA Certified |
