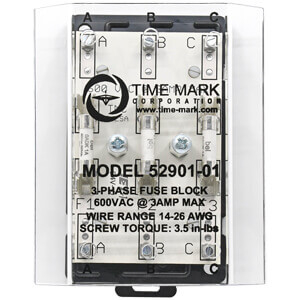

3-Phase Fuse Block
The 3-Phase Fuse Block (SKU 52901-01) offers reliable circuit protection for industrial applications. Designed for low current devices up to 600VAC, this unit ensures operational continuity. Its versatile mounting options, including panel or DIN rail, facilitate integration into diverse systems. The block accommodates both 20mm and 32mm ceramic fuses, providing flexibility in protection schemes. With a robust NORYL base and polycarbonate cover, it withstands demanding environments, operating effectively from -40° to +140° F. The screw terminal termination supports 14-26 AWG wire, ensuring secure connections with a recommended torque of 3.5 in-lbs. This component is engineered for consistent performance in critical electrical systems, minimizing downtime and safeguarding equipment. It can also be configured as three single fuse links, adding to its adaptability in various electrical setups.
3-Ph Fuse Block St
Specifications
| Termination | Screw Terminal |
|---|---|
| Voltage | 600VAC |
| Current | 3A |
| Operating Temperature | -40° to +140° F |
| Humidity | 97% w/o condensation |
| Material (Base) | NORYL |
| Material (Cover) | Polycarbonate |
| Wire Size | 14-26 AWG |
| Mounting | Panel Mount or DIN Rail Mount |
| Application | Protects Low Current Devices up to 600 VAC |
| Accepted Fuse Types | 20mm or 32mm ceramic fuses |
| Included Fuses | 3 fuses installed + 2 spares |
| Included Fuse Type | 20mm 1A fuses (SKU: 520078) |
| Configuration | Can Be Used as 3 Single Fuse Links |
| Screw Torque | 3.5 in-lbs |
| Dimension Tolerance | ± 0.06 |
