Pressure Transducer

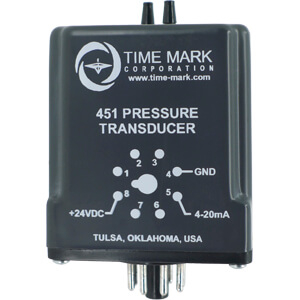

The Model 451 Pressure Transducer provides a robust solution for industrial liquid level measurement, employing a reliable bubbler type system. This unit accurately converts air pressure input ranging from 0 to 15 psi into a proportional 4-20mA signal output, essential for precise process control. Its construction features a durable NORYL plastic case, ensuring longevity and consistent operation in various industrial settings. Designed and manufactured in the U.S.A., the transducer operates efficiently on a 24VDC input with a minimal power consumption of 1 watt. It delivers a repeat accuracy of ±1% across a compensated temperature range of 32° to +158° F, ensuring data integrity. Installation is streamlined via a standard 8-pin octal socket, facilitating integration into existing systems and simplifying maintenance procedures. This transducer is a dependable component for critical monitoring tasks.
Pressure Transducer
Specifications
| System Type | Bubbler type system |
|---|---|
| Warranty | 5 Year Unconditional Warranty |
| Origin | Engineered and Built in the U.S.A. |
| Input voltage | 24VDC |
| Power consumption | 1 watt maximum |
| Air pressure input | 0 to 15 psi |
| air pressure | 58 psid |
| Input air supply fitting | requires 3/16" i.d. tubing |
| Repeat accuracy | ±1% |
| Signal output | 4-20mA proportional to 0-15 psi (in water; 0-15 psi = 0-34.6 feet at +77° F) |
| load resistance | 500 ohms |
| Compensated temperature | 32° to +158° F |
| Operating temperature | -13° to +158° F |
| Humidity tolerance | 0-97% w/o condensation |
| Case material | NORYL plastic |
| Termination | 8-pin octal socket |
| Required Socket | 51X120 |
| Dimension Tolerance | ± 0.06 |
| Mounting | standard 8-pin octal socket for remote use |
