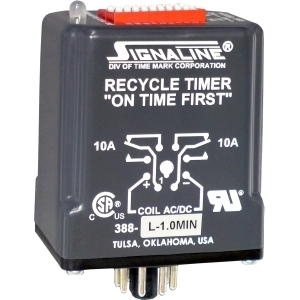

Recycle Timer “On Time First”
The Model 388 Recycle Timer provides precise control for industrial cycling applications. This DPDT digital input timer allows for independent adjustment of ON and OFF cycles, facilitating optimized load management. With an accuracy of ± 2% and repeatability of ± 0.1%, it ensures consistent operation across its configurable timing ranges of 0.1-1023 seconds or 1-1023 minutes. Its robust design accommodates input voltages from 10-28V AC/DC or 40-260V AC/DC and operates reliably across a -20°F to +140°F temperature range. The 10A contact rating at 120VAC resistive and 775V transient protection enhance its durability in demanding environments. UL Recognized and CSA Certified, the Model 388 is engineered for sustained performance in critical timing sequences. Its 8-pin socket mounting simplifies installation and maintenance, contributing to operational efficiency.
Recyc Tmr On 1St
Specifications
| Description | The Model 388 is a DPDT, high-accuracy digital input timer designed to cycle a load on and off, or to cycle between two loads. The ON and OFF cycles are independently adjustable. |
|---|---|
| Adjustment Type | digital |
| Config: Voltage | L = 10-28V AC/DC, H = 40-260V AC/DC |
| Config: Timing Range | .1SEC: 0.1-102.3 Sec., 1SEC: 1-1023 Sec., 1MIN: 1-1023 Min. |
| Accuracy | ± 2% |
| Repeatability | ± 0.1% |
| Recycle time | 100ms |
| Operating temperature | -20°F to +140°F |
| Contacts | DPDT |
| Contact rating | 10A at 120VAC resistive |
| Transient protection | 775V, 80 Joules |
| Humidity tolerance | 0-97% w/o condensation |
| Enclosure material | NORYL Plastic |
| Mounting | 8-pin socket |
| Required Socket | 51X120 |
| Agency approvals | UL Recognized and CSA Certified |
| Config: Additional Options | /C = Custom (Voltage and/or Timing), /SG = Silver with Gold Flash Contacts |
| Input Voltage | 10-28V AC/DC OR 40-260V AC/DC |
| Input Power | 3 Watts Max |
| Output Rating (Resistive) | 240V AC, 10A |
| Output Rating (General Use) | 120V AC, 4A; 240V AC, 2A |
| Output Rating (Pilot Duty) | C300 |
| Pilot Duty (120V) | Make 15A, Break 1.5A |
| Pilot Duty (240V) | Make 7.5A, Break 0.75A |
| Warranty | 5-Year Unconditional Warranty |
| LED Indicator (Green) | Energized |
| LED Indicator (Red) | De-energized |
| LED Indicator (Flashing Green or Red) | Relay is Timing |
