368-L-0.1SEC

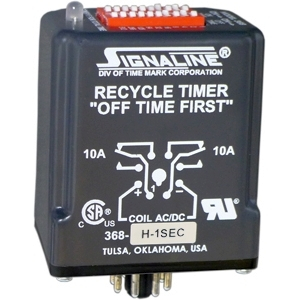

The Model 368 Recycle Timer provides reliable timing control for industrial applications. Its digital adjustment ensures precise cycle management across various operational demands. Users can select from multiple timing ranges, including fine-grained 0.1-second intervals or extended 1023-minute durations, accommodating diverse process requirements. The device maintains high operational integrity with an accuracy and repeatability of ± 0.1%. Configurable voltage options, spanning 10-28V AC/DC and 40-260V AC/DC, enhance its adaptability to different power systems. DPDT contacts rated at 10A at 240VAC resistive offer robust switching capabilities. With an operating temperature range of -20°F to +140°F and 0-97% humidity tolerance without condensation, this timer is designed for consistent performance in demanding environments. Its 8-pin socket mounting simplifies installation.
The Models 338 and 368 Recycle Timers are designed to cycle a load on
and off, or to cycle between two loads. The ON and OFF cycles are
independently adjustable on each model. The Model 338 is a DPDT
potentiometer (knob-adjust). The Model 368 is a DPDT, high-accuracy
digital input timer. Solid-state circuits in each model drive an
internal electromechanical relay. Each model is functionally
interchangeable. They are available in a wide variety of voltage and
timing ranges, to cover the majority of application requirements. An SG
version of this model is available using silver with gold flash
contacts. Models 338 and 368 are UL Recognized and CSA Certified.
Out of stock
Specifications
| Adjustment Type | digital |
|---|---|
| Config: Voltage | L = 10-28V AC/DC; H = 40-260V AC/DC |
| Config: Timing Range | .1SEC: 0.1 - 102.3 Sec.; 1SEC: 1 - 1023 Sec.; 1MIN: 1 - 1023 Min. |
| Accuracy | ± 0.1% |
| Repeatability | ± 0.1% |
| Recycle time | 100ms |
| Operating Temperature | -20°F to +140°F |
| Contacts | DPDT |
| Contact Rating | 10A at 240VAC resistive |
| Transient Protection | 775V, 80 Joules |
| Humidity Tolerance | 0-97% w/o condensation |
| Enclosure Material | NORYL Plastic |
| Mounting | 8-pin socket |
| Required Socket | 51X120 |
| Agency Approvals | UL Recognized and CSA Certified |
| Config: Options | /C = Custom (Voltage and/or Timing); /SG = Silver with Gold Flash Contacts |
| UL Input Voltage | 10-28V AC/DC OR 40-260V AC/DC |
| UL Power Consumption | 3 Watts Max |
| UL Output (Resistive) | 10A @ 240V AC |
| UL Output (General Use) | 4A @ 120V AC; 2A @ 240V AC |
| UL Output (Pilot Duty) | C300 |
| UL Pilot Duty (120V) | Make 15A, Break 1.5A |
| UL Pilot Duty (240V) | Make 7.5A, Break 0.75A |
| Warranty | 5-Year Unconditional Warranty |
| Dimension Tolerance | ± 0.06 in |
| LED Indicator (Green) | Energized |
| LED Indicator (Red) | De-energized |
| LED Indicator (Flashing) | Relay is Timing |
