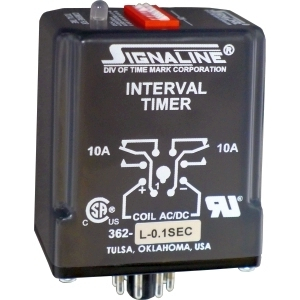

362-H-1MIN
The Model 362 Interval Timer provides precise timing control for industrial applications. Its digital configuration supports timing ranges from 0.1 seconds to 1023 minutes, accommodating diverse operational requirements. Configurable for 10-28V AC/DC or 40-260V AC/DC, it integrates into various power systems. With a repeatability of ± 0.1% and an operating temperature range of -20°F to +140°F, this timer maintains consistent performance in demanding environments. DPDT contacts rated at 10A at 240VAC resistive ensure robust switching capabilities. The unit features 775V, 80 Joules transient protection, enhancing its durability. Timing adjustments are made via dip switches for precise setup. UL Recognized and CSA Certified, the Model 362 is backed by a 5-year unconditional warranty, underscoring its long-term operational stability and reliability in critical processes.
The Models 332 and 362 Interval Timers are designed for a wide usage in
new or replacement industrial applications. Examples include automatic
and batch control circuits, where the relay needs to be energized for a
specific length of time after start-up. The Model 332 is a DPDT
potentiometer (knob-adjust) timer. The Model 362 is a DPDT,
high-accuracy digital input timer. Solid-state timing circuits in each
model drive an internal electromechanical relay. Each model is
functionally interchangeable. They are available in a variety of voltage
and timing ranges to cover most any application. An SG version of this
model is available using silver with gold flash contacts. Models 332 and
362 are UL Recognized and CSA Certified.
Out of stock
Specifications
| Type | digital |
|---|---|
| Config: Voltage | L = 10-28V AC/DC, H = 40-260V AC/DC |
| Config: Timing range | .1SEC: 0.1- 102.3 Sec., 1SEC: 1- 1023 Sec., 1MIN: 1- 1023 Min. |
| Accuracy | ± 2% |
| Repeatability | ± 0.1% |
| Recycle time | 100ms |
| Operating temperature | -20°F to +140°F |
| Contacts | DPDT |
| Contact rating | 10A at 240VAC resistive |
| Transient protection | 775V, 80 Joules |
| Humidity tolerance | 0 - 97% w/o condensation |
| Enclosure material | NORYL Plastic |
| Mounting | 8-pin socket (not included) |
| Agency approval | UL Recognized and CSA Certified |
| Config: Additional Options | /C = Custom (Voltage and/or Timing), /SG = Silver with Gold Flash Contacts |
| UL Input Voltage | 10-28V AC/DC OR 40-260V AC/DC |
| UL Input Power | 3 Watts Max |
| UL Output | 240V AC, 10A, Resistive; 120V AC, 4A, General Use; 240V AC, 2A, General Use; C300, Pilot Duty |
| UL Pilot Duty | 120V: Make 15A, Break 1.5A; 240V: Make 7.5A, Break 0.75A |
| Warranty | 5-year unconditional warranty |
| Reset Method | The supply voltage must be removed to reset the timer. |
| Adjustment Procedure | Set delay time by adding values of selected dip switches. |
| LED Status (Green) | Energized |
| LED Status (Red) | De-energized |
| LED Status (Flashing) | Relay is Timing |
