361-L-0.1SEC
The Model 361 Release Delay Timer provides precise control for industrial applications. Its solid-state DPDT design ensures reliable operation across various systems. With a timing accuracy of ± 2% and repeatability of ± 0.1%, this digital timer maintains consistent performance in critical processes. Users can select timing ranges from 0.1 seconds up to 1023 minutes, offering flexibility for diverse operational requirements. It accommodates diverse power requirements with voltage configurations for 10-28V AC/DC or 40-260V AC/DC. The unit is UL Recognized and CSA Certified, supporting its use in regulated environments. Its robust construction allows operation from -20°F to +140°F with 0-97% humidity tolerance. A 5-year unconditional warranty underscores its durability and long-term value. This timer is engineered for sustained operational integrity in demanding conditions, minimizing downtime.

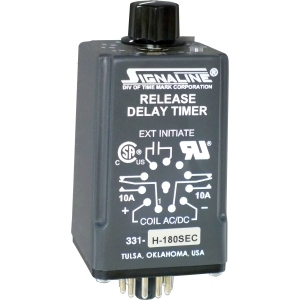

The Models 331 and 361 Release Delay Timers are designed for a wide
usage in new or replacement industrial applications. Examples include
delay-off circuits, batch processing circuits, and other applications
requiring a remote-triggered, off-delay timer. The Model 331 is a DPDT
potentiometer (knob-adjust) timer. The Model 361 is a DPDT,
high-accuracy digital input timer. Solid-state timing circuits in each
model drive an internal electromechanical relay. Each model is
functionally interchangeable. They are available in a variety of voltage
and timing ranges to cover any application. An SG version of this model
is available using silver with gold flash contacts. Models 331 and 361
are UL Recognized and CSA Certified.
Out of stock
$166.00
Specifications
| Description | DPDT, high-accuracy digital input timer |
|---|---|
| Design | Solid-State |
| Warranty | 5-Year Unconditional Warranty |
| Type | digital |
| Config: Voltage | L = 10-28V AC/DC; H = 40-260V AC/DC |
| Config: Timing Range | .1SEC: 0.1 - 102.3 Sec.; 1SEC: 1 - 1023 Sec.; 1MIN: 1 - 1023 Min. |
| Accuracy | ± 2% |
| Repeatability | ± 0.1% |
| Recycle time | 100ms |
| Operating temperature | -20°F to +140°F |
| Contacts | DPDT |
| Contact rating | 10A at 240VAC resistive |
| Transient protection | 775V, 80 Joules |
| Humidity tolerance | 0-97% w/o condensation |
| Enclosure material | NORYL Plastic |
| Mounting | 11-pin socket - not included |
| Agency approval | UL Recognized and CSA Certified |
| Config: Additional Options | /C = Custom (Voltage and/or Timing); /SG = Silver with Gold Flash Contacts |
| UL Input Voltage | 10-28V AC/DC OR 40-260V AC/DC |
| UL Input Power | 3 Watts Max |
| UL Output | 240V AC, 10A, Resistive; 120V AC, 4A, General Use; 240V AC, 2A, General Use; C300, Pilot Duty |
| UL Pilot Duty (120V) | Make 15A, Break 1.5A |
| UL Pilot Duty (240V) | Make 7.5A, Break 0.75A |
| LED Indicator (Green) | Energized |
| LED Indicator (Red) | De-energized |
| LED Indicator (Flashing) | Relay is Timing |
| Adjustment Procedure | Determine switch selections for digital timer |
