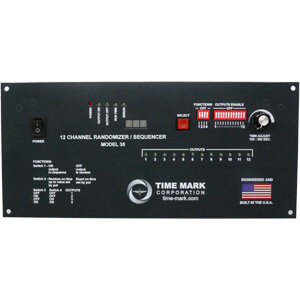

12 Channel Randomizer/Sequencer
The 12 Channel Randomizer/Sequencer offers precise control for industrial applications. With 12 individual outputs, it supports both sequence and random operating modes, providing flexibility for diverse system requirements. In sequence mode, outputs activate for a predetermined time before moving to the next. Random mode activates outputs for a random duration, then deactivates before selecting new outputs. Users can configure output relays for dry contact, 24VAC, or ground, adapting to specific load needs. Time on/off control is adjustable, ensuring optimal operation. The unit features non-volatile memory for settings retention and robust surge protection at 1500W. Its 24VAC input and 0-130°F operating temperature range ensure reliable performance in various industrial environments. This device streamlines automated processes by managing multiple outputs efficiently and dependably, enhancing system stability and operational consistency.
12Cchnl Randomizer
Specifications
| Number of Outputs | 12 individual |
|---|---|
| Output Options | 3 |
| Operating Modes | Sequence or Random |
| Time On/Off Control | Random or Adjustable |
| Remote Start | 2 wire or 3 wire |
| Input voltage | 24VAC +/-10% |
| Power consumption | 12W |
| Signal input (trigger) | 2 wire / 3 wire |
| Display type | 7 segment LED / 17 LED's |
| Output | 12 relays (SPST) |
| Output configuration | See output setup |
| Surge protection | 1500W (10/1000 µs) |
| Circuit breaker | 500mA |
| Circuit breaker protection | Protects Model 35 only |
| Operating temp. | 0 - 130°F |
| Humidity | 0 - 90% non-condensing |
| Country of Origin | U.S.A. |
| Sequence Mode Operation | Activates up to four outputs for a predetermined time, deactivates, then repeats with the next outputs in sequence. |
| Random Mode Operation | Activates up to four outputs for a random amount of time (120 to 300 sec.), deactivates (1 to 30 sec.), then picks a new set of outputs. |
| Custom Programming | Available from the factory |
| Output Relay Option 1 | No jumper — The relay is a dry contact (SPST/N.O.) for that channel. |
| Output Relay Option 2 | Jumper center and upper pin - The relay will provide 24VAC to the output pin for that channel. |
| Output Relay Option 3 | Jumper center and lower pin - The relay will provide ground to the output pin for that channel. |
| Output Contact Rating (Dry) | 240VAC 10AMP, 30VDC 3AMP |
| Control Function: Position 1 | ON: Output in sequence, OFF: Output is random |
| Control Function: Position 2 | ON: Random time ON up to value set by pot, OFF: Exact time set by pot |
| Control Function: Number of outputs | 1 (OFF/OFF), 2 (ON/OFF), 3 (OFF/ON), 4 (ON/ON) |
| Output Enable/Disable | 12 position dip switch (Channels set to OFF are disabled) |
| Time Adjustment: Output ON time | 120 - 300 Sec. |
| Time Adjustment: Output OFF time | 1 - 30 Sec. |
| Time Adjustment: Run time | 5 - 30 Min. |
| Memory | All settings are stored in non-volatile memory. |
| Warranty | This product is warranted to be free from defects in materials and workmanship for one year. |
