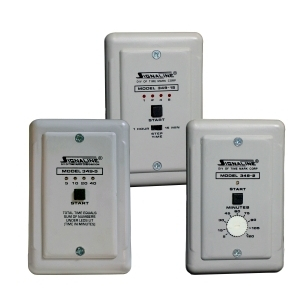

Override Timer
The MODEL 349 series Override Timer, SKU 349-2, provides precise timing control for industrial environments. Its operational flexibility is supported by a dual supply voltage capability of 24VAC or 120VAC. Users can set timing delays within a 5-120 minute range, with accuracy maintained at ± 2% over two hours. The unit's design incorporates a restart function, allowing the timer cycle to be reset by a subsequent button press during an active delay. This feature enhances operational adaptability in dynamic control sequences. Housed in an ABS plastic enclosure, the timer is designed for standard wall switch box mounting, simplifying installation. A 10A SPDT contact rating accommodates diverse load requirements, while 2500V transient protection ensures system resilience. This timer offers a dependable solution for various industrial timing needs.
2-Hour Timer
Specifications
| Supply Voltage | 24VAC ± 20% or 120VAC ± 10% |
|---|---|
| Timing Range | 5-120 minutes |
| Timing Accuracy | ± 2% at 2 hours |
| Recycle Time | 500ms |
| Input Frequency | 50-400Hz |
| Operating Temp | -13°F to +140°F |
| Power Consumption | 2W |
| Transient Protection | 2500V for 10ms |
| Contact Rating | SPDT 10A at 240VAC resistive |
| Enclosure Material | ABS plastic |
| Mounting | Uses Standard Wall Switch Box |
| Time Delay | Adj: 5 TO 120 MINUTES |
| Operation | Pressing the start button pulls in the internal relay. After the delay, the relay drops out. |
| Restart | Pressing the button again during the delay period will restart the timer. |
| Indicator | An indicator light shows when the relay is pulled in. |
| Warranty | One year |
