276B60
The Model 276B Current Transformer provides reliable current measurement essential for industrial applications. Featuring a 60:5 ratio and a 1.0 VA burden at 60Hz, it ensures consistent performance across its operational range. Its ± 2% accuracy for 50-100 amp CTs delivers precise data acquisition, critical for system monitoring and control. Designed for operational efficiency, this transformer incorporates a 1.56 inch inner diameter, accommodating various conductor sizes with ease. The unit's broad 25 to 400Hz frequency range supports diverse system requirements, enhancing its versatility. UL Recognized and CSA Certified, it meets critical safety and performance standards, ensuring compliance and operational integrity. Mounting brackets facilitate straightforward installation, minimizing setup time. This component is engineered for durability and long-term service in demanding environments, contributing to stable and accurate system monitoring.

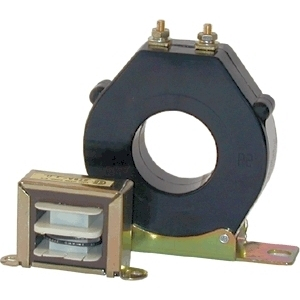

The Model 276B Current Transformer is a ring-type current transformer
for currents from 50 to 1200 amps. The Model 276B has an accuracy rating
of plus or minus 2% for 50-100 amp CT’s, and plus or minus 1% over 100
amps at 60 Hz. This CT also features a 25-400 Hz frequency range, #8-32
secondary terminals and mounting brackets. Polarity markings are stamped
on the transformer. The Model 276B is UL Recognized and CSA Certified.
Out of stock
Specifications
| Ratio | 60:5 |
|---|---|
| Burden (VA @ 60Hz) | 1.0 |
| Accuracy | ± 2% for 50-100 amp CTs at 60Hz |
| Inner Diameter | 1.56" |
| Secondary Current | 0 to 5 Amp |
| Frequency Range | 25 to 400Hz |
| Terminals | #8-32 secondary terminals |
| Mounting | Mounting brackets |
| Agency Approvals | UL Recognized, CSA Certified |
| Warranty | 1 year |
