Standard analogue panel meters are the primary interface for monitoring voltage and current in power generation and distribution systems. These units are available in square, rectangular, and round formats to meet diverse aesthetic and space requirements. They feature high contrast scales and knife edge pointers to minimize parallax errors during manual readings. Each meter is calibrated to specific accuracy classes, typically ranging from 1.5 to 2.5, ensuring the data provided is reliable for industrial process control. The internal damping mechanisms are optimized to prevent excessive pointer overshoot while maintaining a responsive indication of signal changes.

Bimetallic movements are specifically designed for measuring thermal demand and average current over time. These movements utilize two strips of dissimilar metals bonded together, which deflect as they are heated by the electrical current. This deflection is proportional to the square of the current, making these meters ideal for identifying sustained overloads in transformers and feeders. Many bimetallic meters include a secondary "slave" pointer that remains at the maximum recorded position, providing maintenance teams with a historical record of peak thermal demand since the last manual reset.

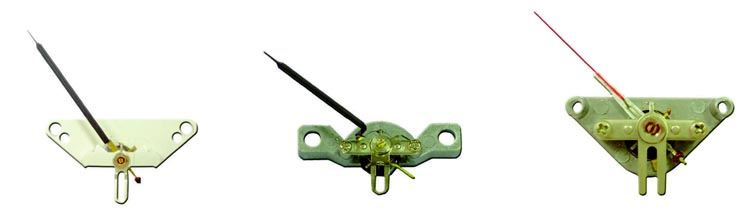

Moving iron movements are robust instruments designed to measure both AC and DC quantities, though they are most commonly used for True RMS AC measurements. These meters utilize the magnetic repulsion between two soft iron vanes placed within a stationary field coil. Because the deflection is independent of current direction, these meters are inherently suitable for AC circuits without the need for a rectifier. They are exceptionally durable and capable of withstanding significant momentary overloads, making them the standard choice for industrial motor starters and heavy duty power switchgear.

Current shunts are high precision, low resistance resistors used to extend the measurement range of DC ammeters. By diverting the majority of the current through the shunt and measuring the proportional millivolt drop across it, a standard meter can monitor thousands of amperes. Our shunts are manufactured from manganin or similar alloys with very low temperature coefficients to ensure accuracy remains stable despite heat generation. They are available in various configurations, including base mounted and busbar mounted types, with standard outputs such as 50mV, 60mV, or 100mV.

For applications involving extreme mechanical shock, high vibration, or washdown environments, rugged analogue panel meters provide the necessary protection. These units are often hermetically sealed and feature reinforced pivot and jewel or taut band suspensions. The enclosures are constructed from high impact materials and meet rigorous Ingress Protection (IP) and MIL-SPEC standards. They are commonly specified for military vehicles, offshore drilling platforms, and heavy construction machinery where standard industrial meters would fail due to mechanical stress.

Taut band movements represent an evolution in meter design, replacing traditional pivots and hairsprings with a pair of tensioned gold or platinum alloy ribbons. This construction eliminates mechanical friction and hysteresis, allowing the meter to respond to extremely low signal levels with high repeatability. Taut band meters are highly resistant to shock and vibration as there are no delicate pivots to break or wear down. This makes them ideal for sensitive portable instruments and high end industrial controllers where long term calibration stability is a critical requirement.
